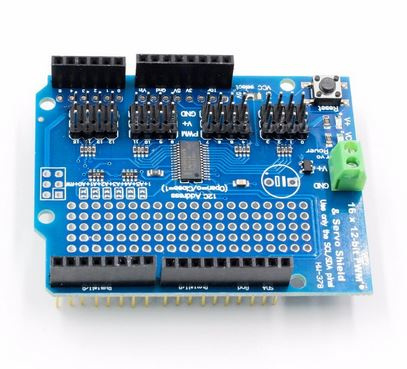

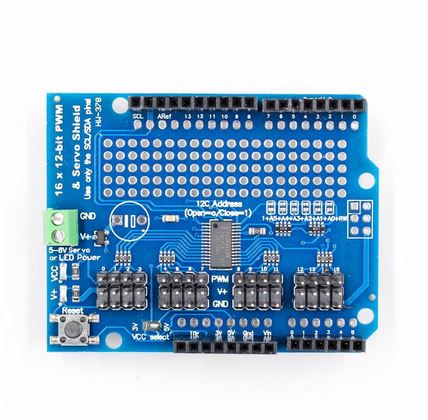

16-Channel 12-bit PWM/Servo Shield - I2C interface
Artikelnummer: 540708720-01
€ 11,95
(inclusief btw)

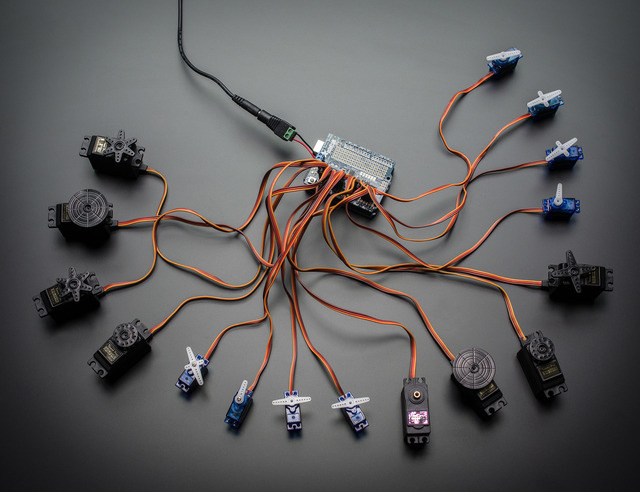

Je wil een coole Arduino robot maken, een hexapod wandelaar, of misschien gewoon een kunstwerk met veel bewegende delen. Of misschien wil je wel een heleboel LEDs aansturen met nauwkeurige PWM-output. Dan besef je dat de Arduino slechts een paar PWM-uitgangen heeft en dat die uitgangen misschien wel gebruikt worden door een ander shield! Wat nu? Je zou op kunnen geven of je kan gewoon dit handige PWM en servo driver shield gebruiken. Het is net als de populaire PWM / Servo Breakout maar nu Arduino-ready en hij werkt met elke Arduino die shields gebruikt zoals de Uno, Leonardo, Mega, ADK.
- There's an I2C-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
- It is 5V compliant, which means you can control it from a 3.3V Arduino and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
- 6 address select pins so you can stack up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs
- Adjustable frequency PWM up to about 1.6 KHz
- 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
- Configurable push-pull or open-drain output
